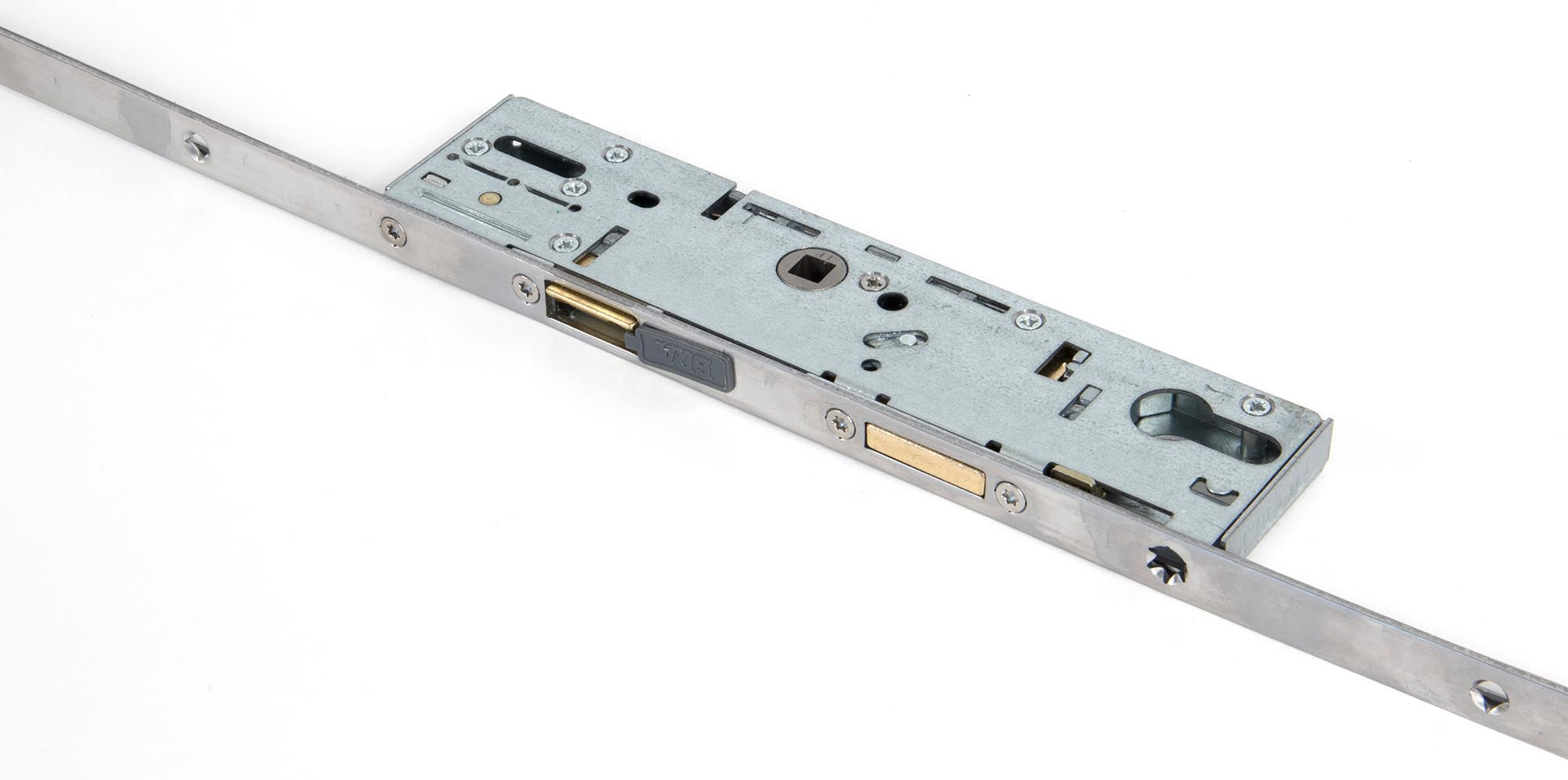

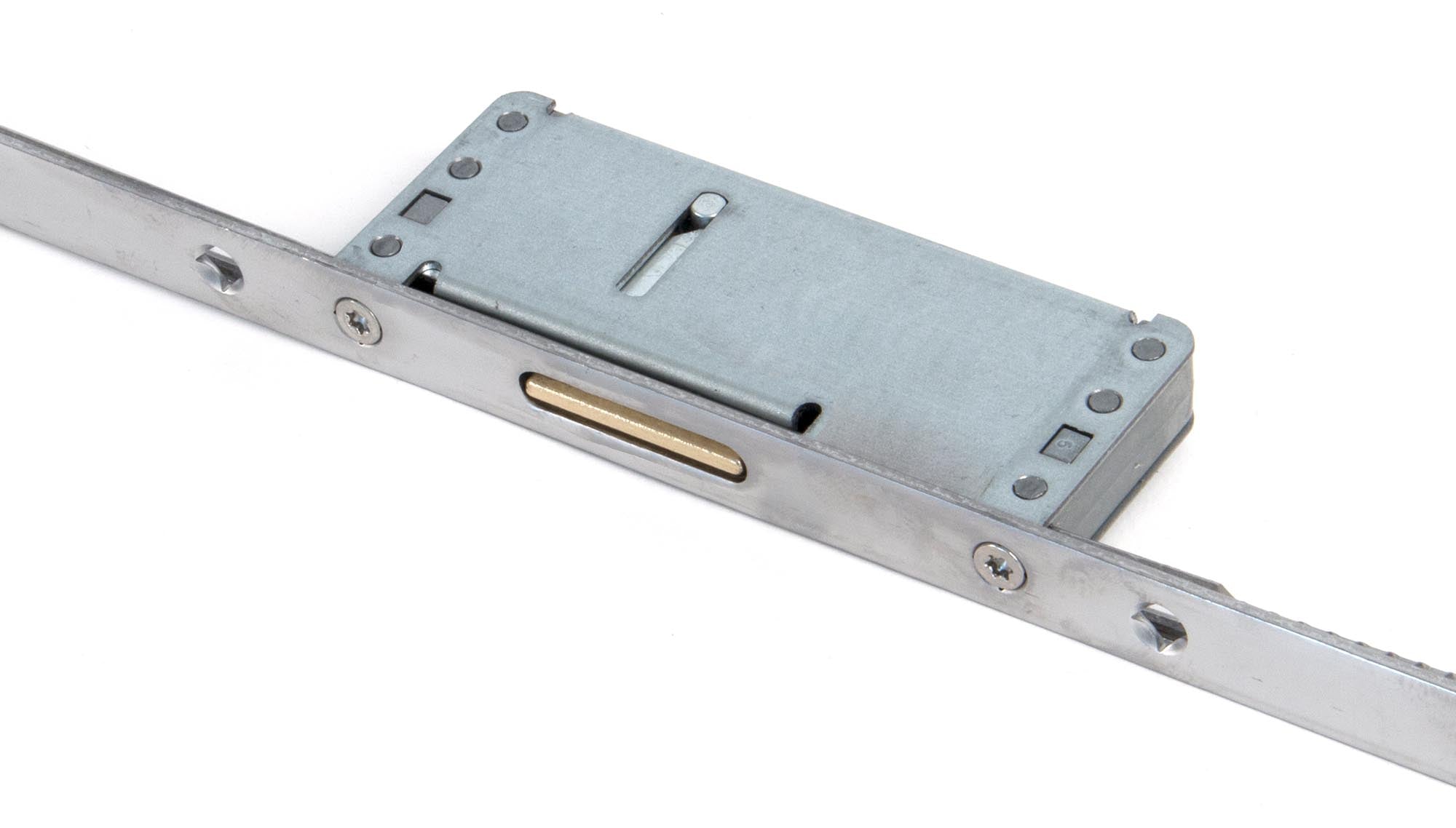

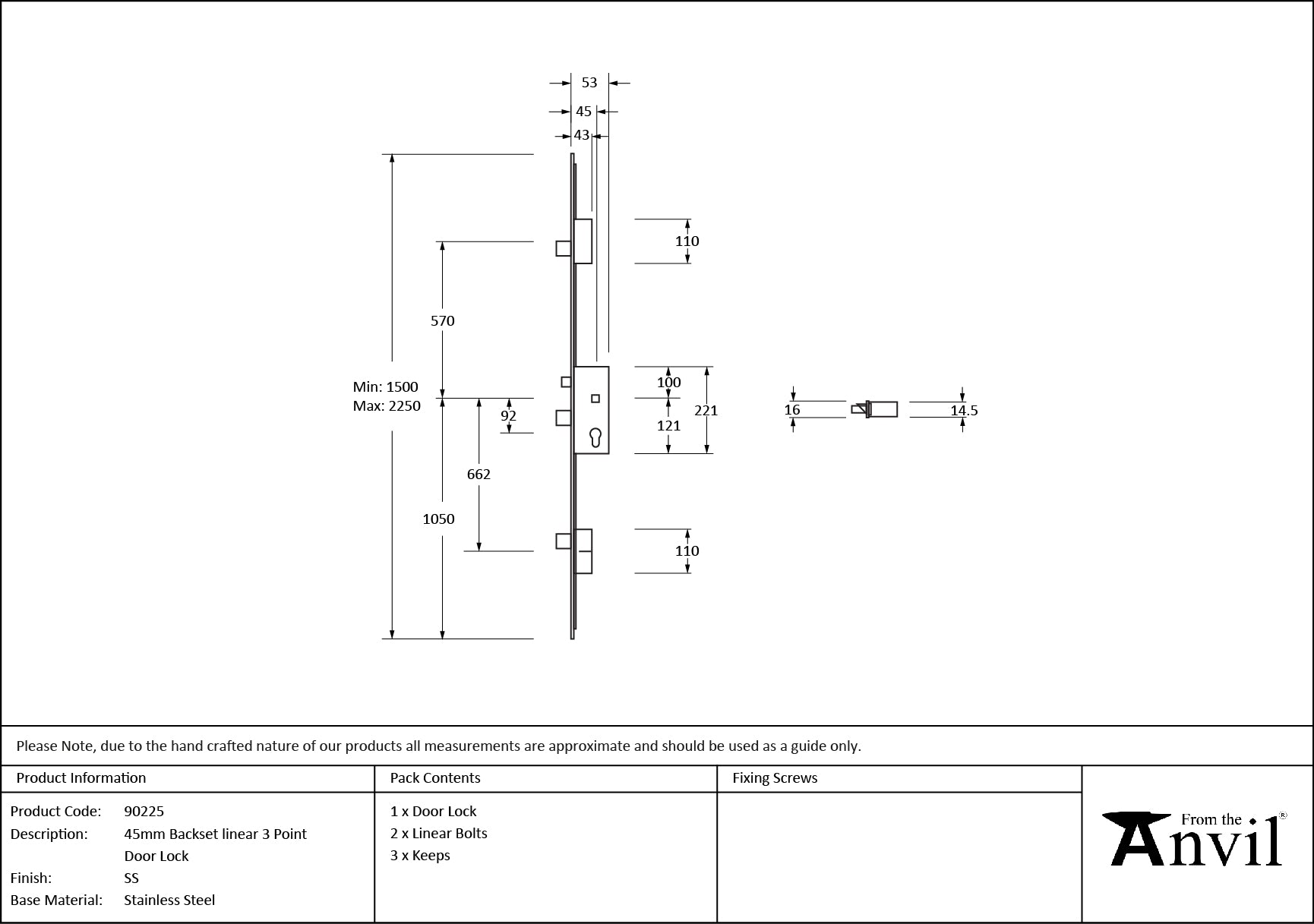

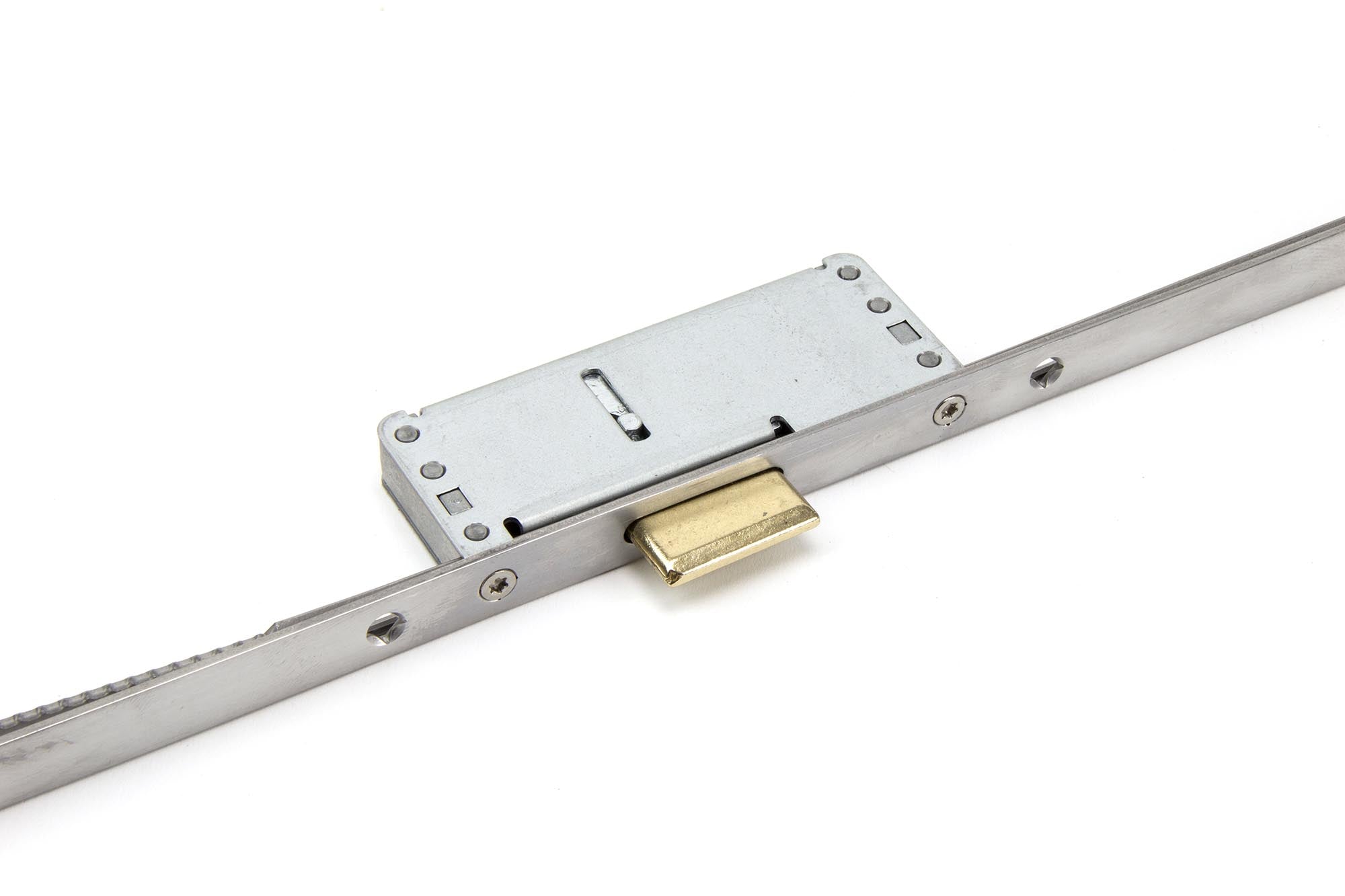

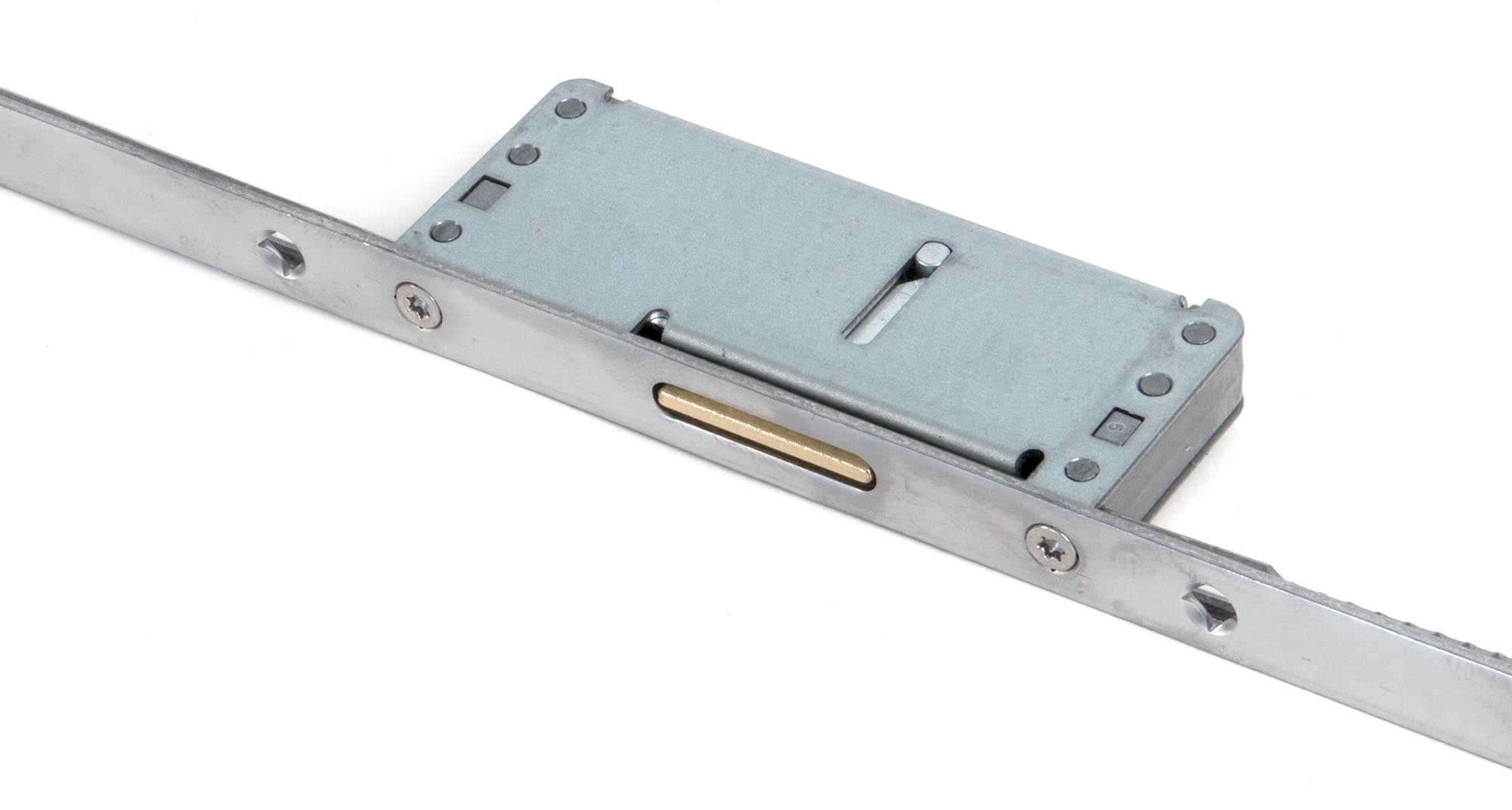

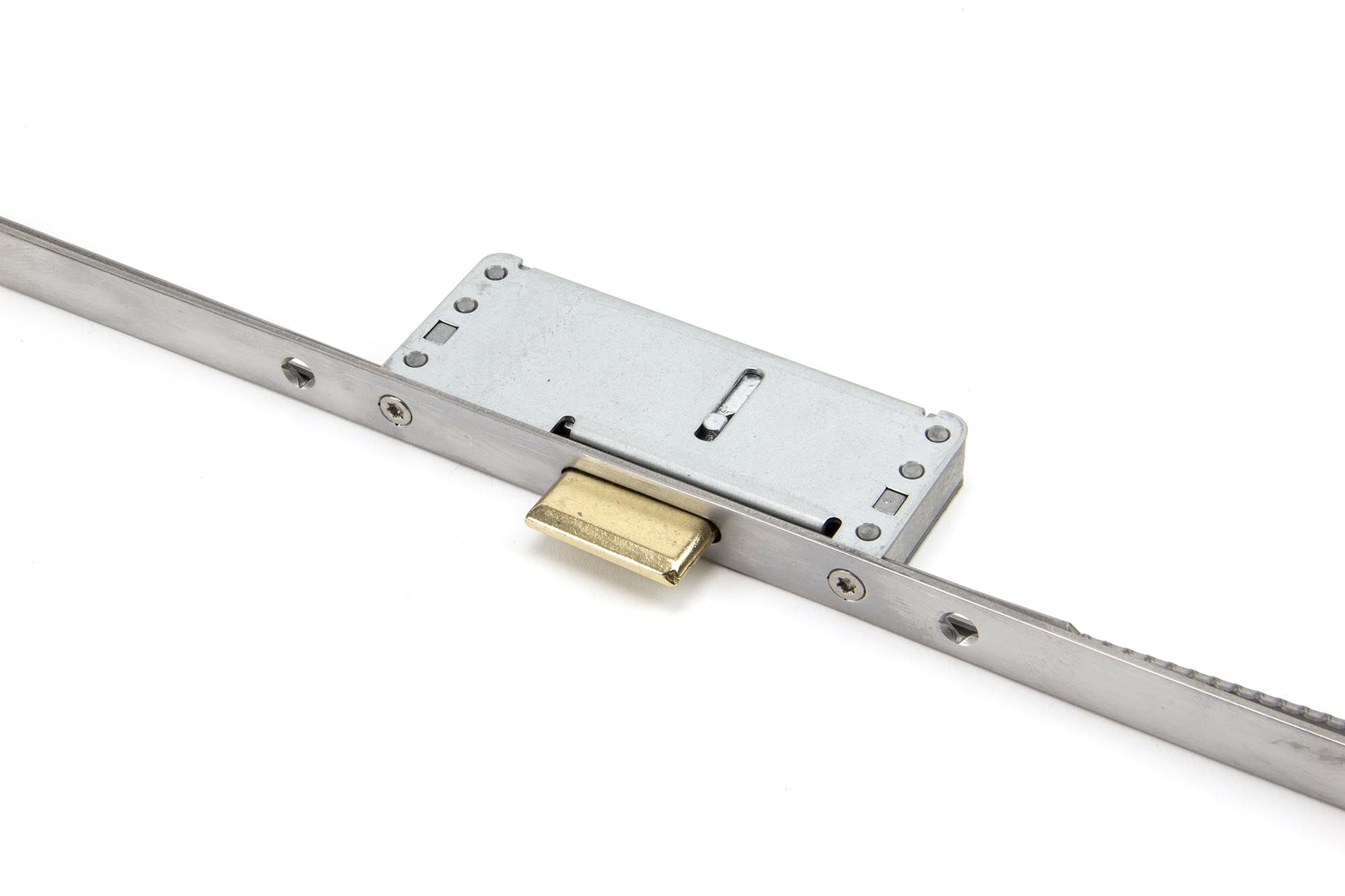

SS Backset Linear 3 Point Door Lock - 45mm
The SS Backset Linear 3 Point Door Lock is a 45mm backset three-point locking mechanism in stainless steel, designed for secure multipoint locking on compatible doors. It is intended for use with 92mm centre espagnolette locking handle sets.The lock can be converted into a 5-point system using shootbolts (product code 91886). Matching keeps are sold separately. Where converted to a 5-point configuration the minimum door height is 1970mm and the maximum door height is 2105mm.Key Features
Backset: 45mm (linear 3-point lock)
Compatibility: For use with 92mm centre espagnolette locking handle sets
Convertible: Can be turned into a 5-point lock with shootbolts (91886)
Finish / Material: Stainless Steel
Additional items: Matching keeps sold separately
Door height (5-point): Minimum 1970mm, maximum 2105mm
Available Options
Backset / Style: 45mm
Finish: Stainless Steel
… Read moreChoose your product
Key features
Need help choosing?
Chat with us on WhatsApp
Also in this range
Product details
The SS Backset Linear 3 Point Door Lock is a 45mm backset three-point locking mechanism in stainless steel, designed for secure multipoint locking on compatible doors. It is intended for use with 92mm centre espagnolette locking handle sets.
The lock can be converted into a 5-point system using shootbolts (product code 91886). Matching keeps are sold separately. Where converted to a 5-point configuration the minimum door height is 1970mm and the maximum door height is 2105mm.
Key Features
- Backset: 45mm (linear 3-point lock)
- Compatibility: For use with 92mm centre espagnolette locking handle sets
- Convertible: Can be turned into a 5-point lock with shootbolts (91886)
- Finish / Material: Stainless Steel
- Additional items: Matching keeps sold separately
- Door height (5-point): Minimum 1970mm, maximum 2105mm
Available Options
- Backset / Style: 45mm
- Finish: Stainless Steel
