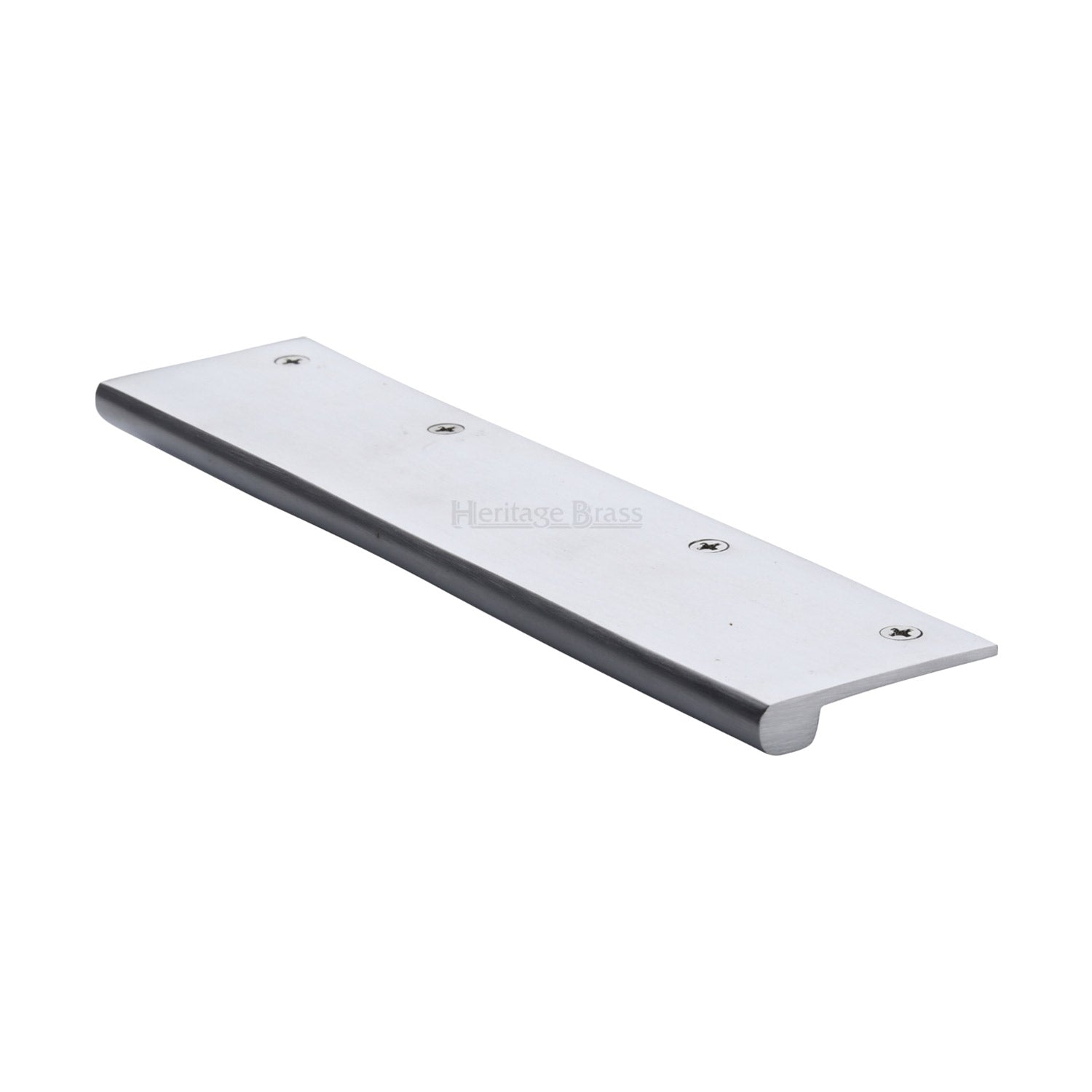

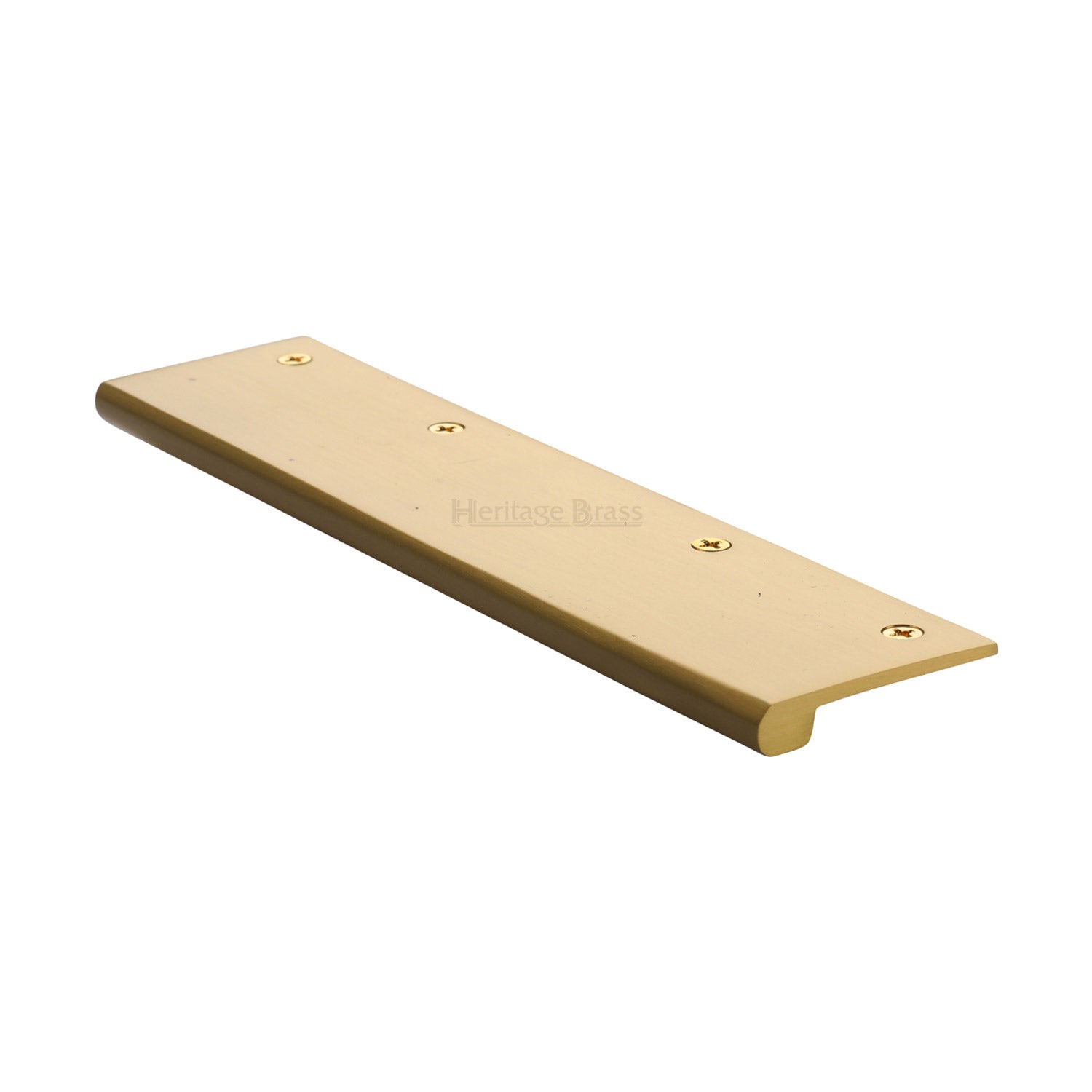

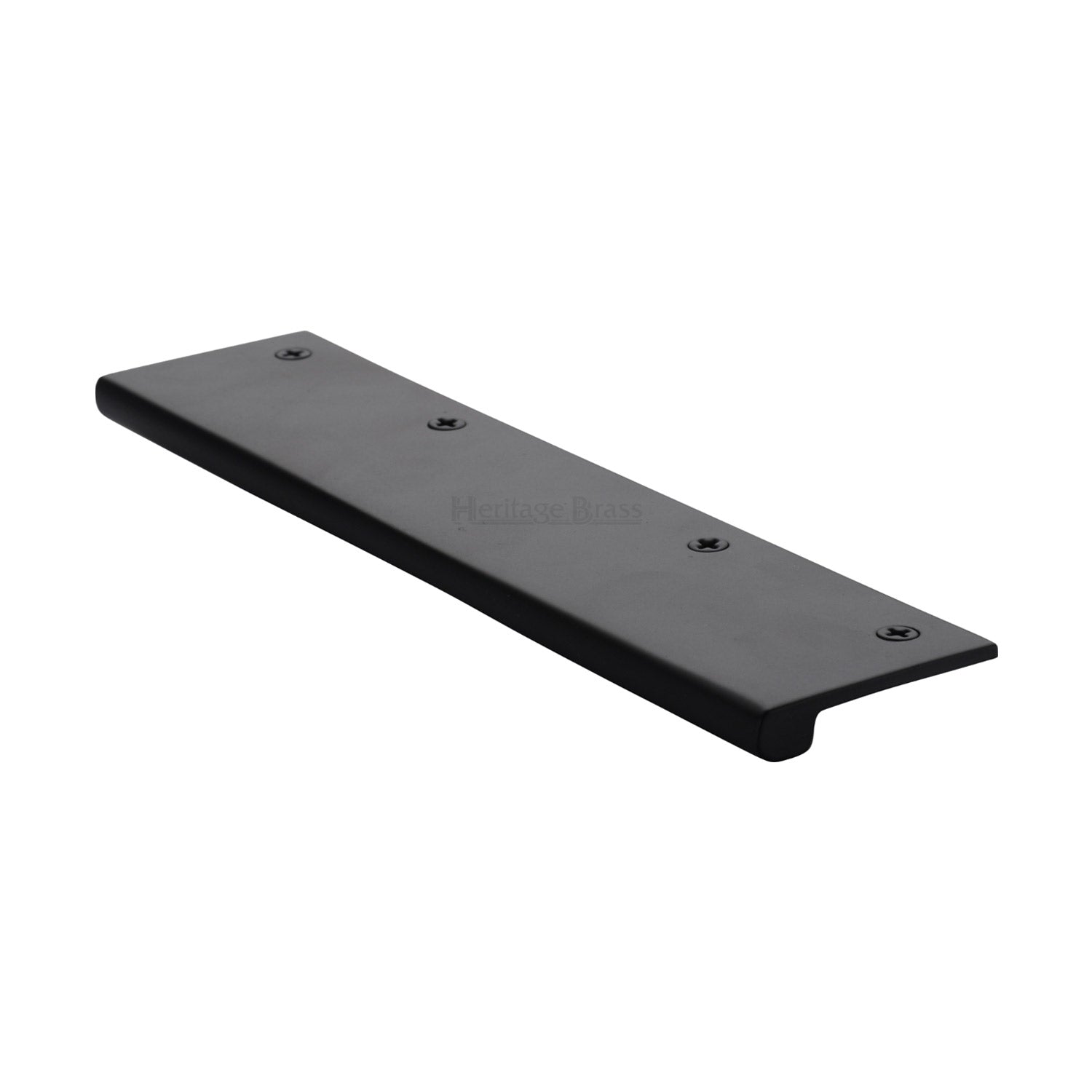

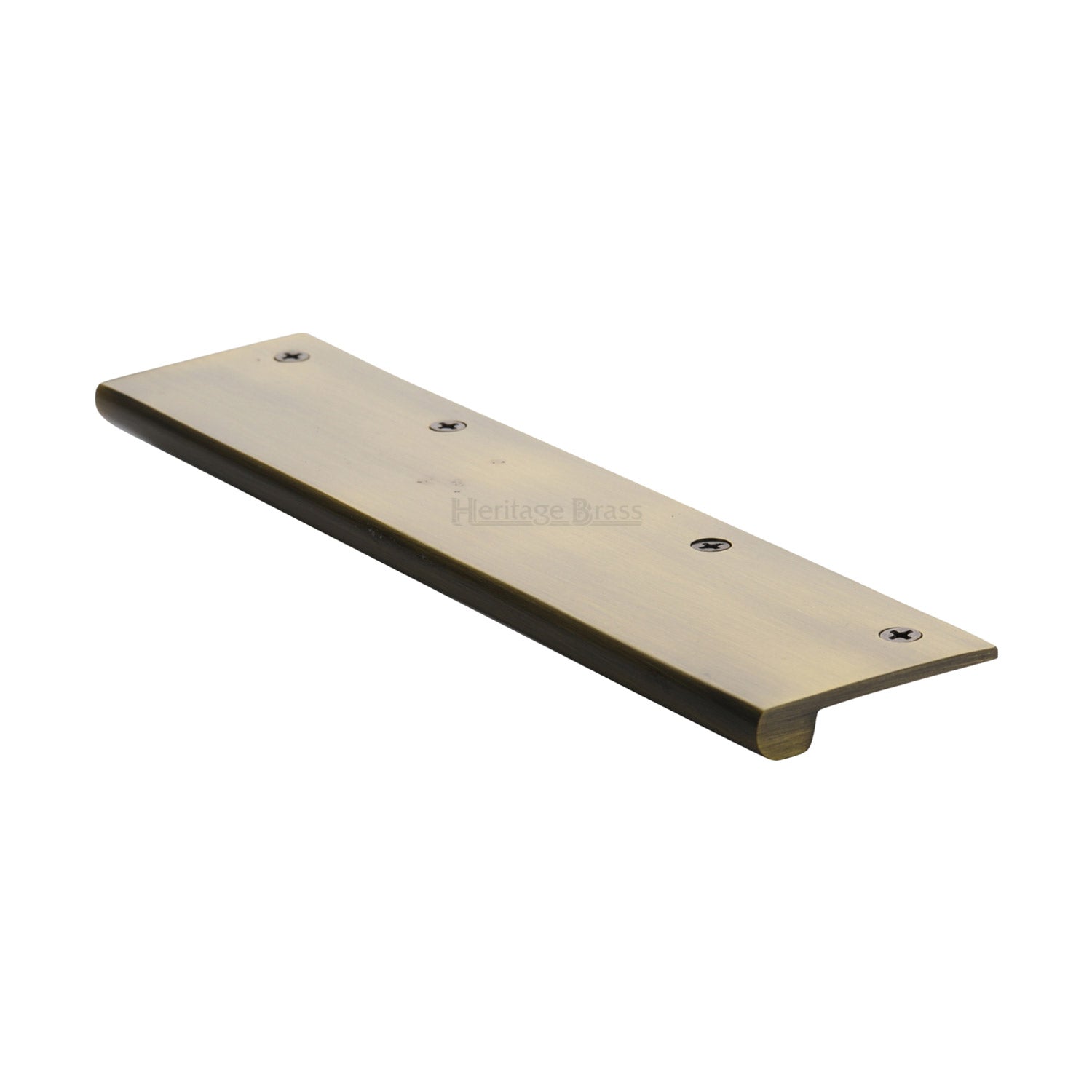

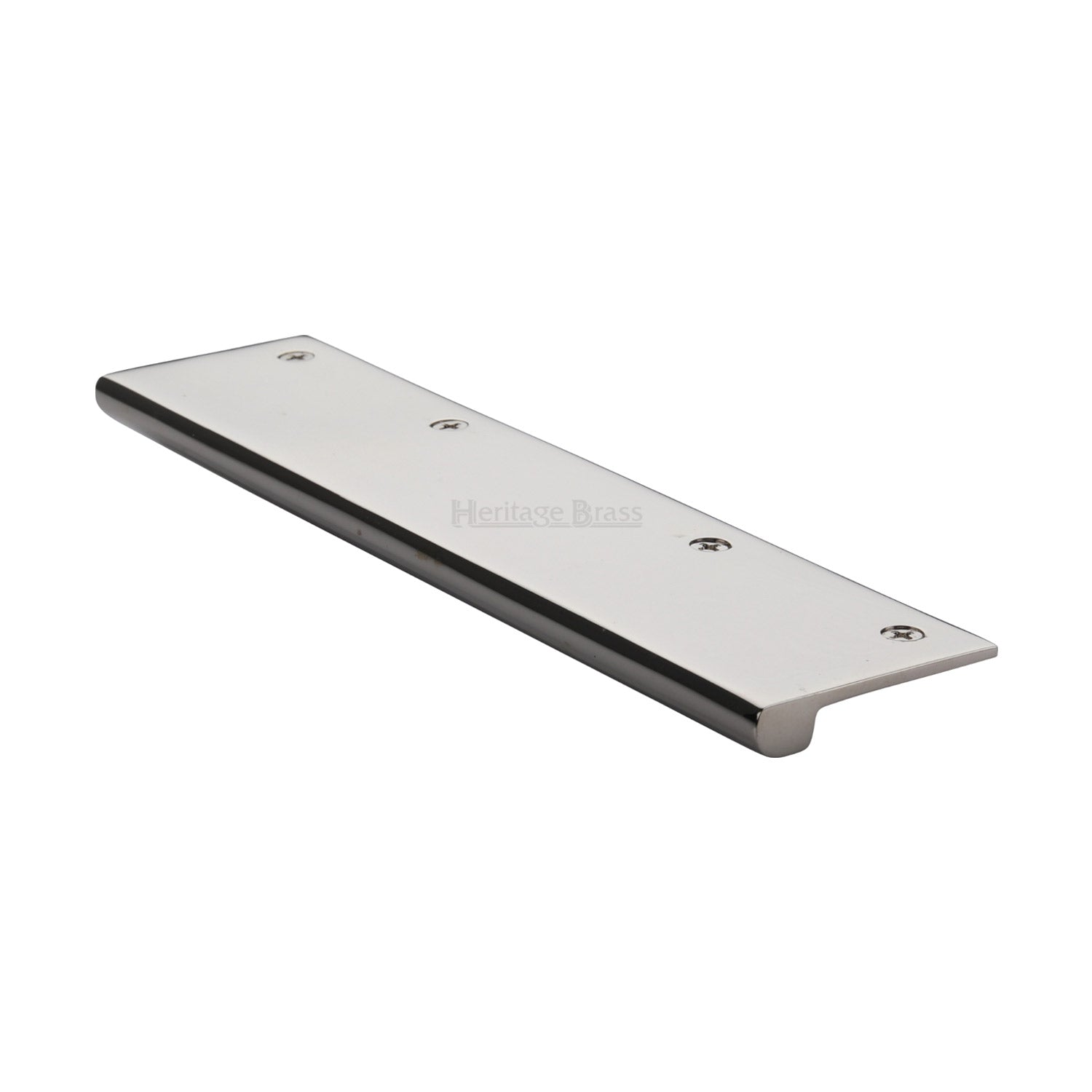

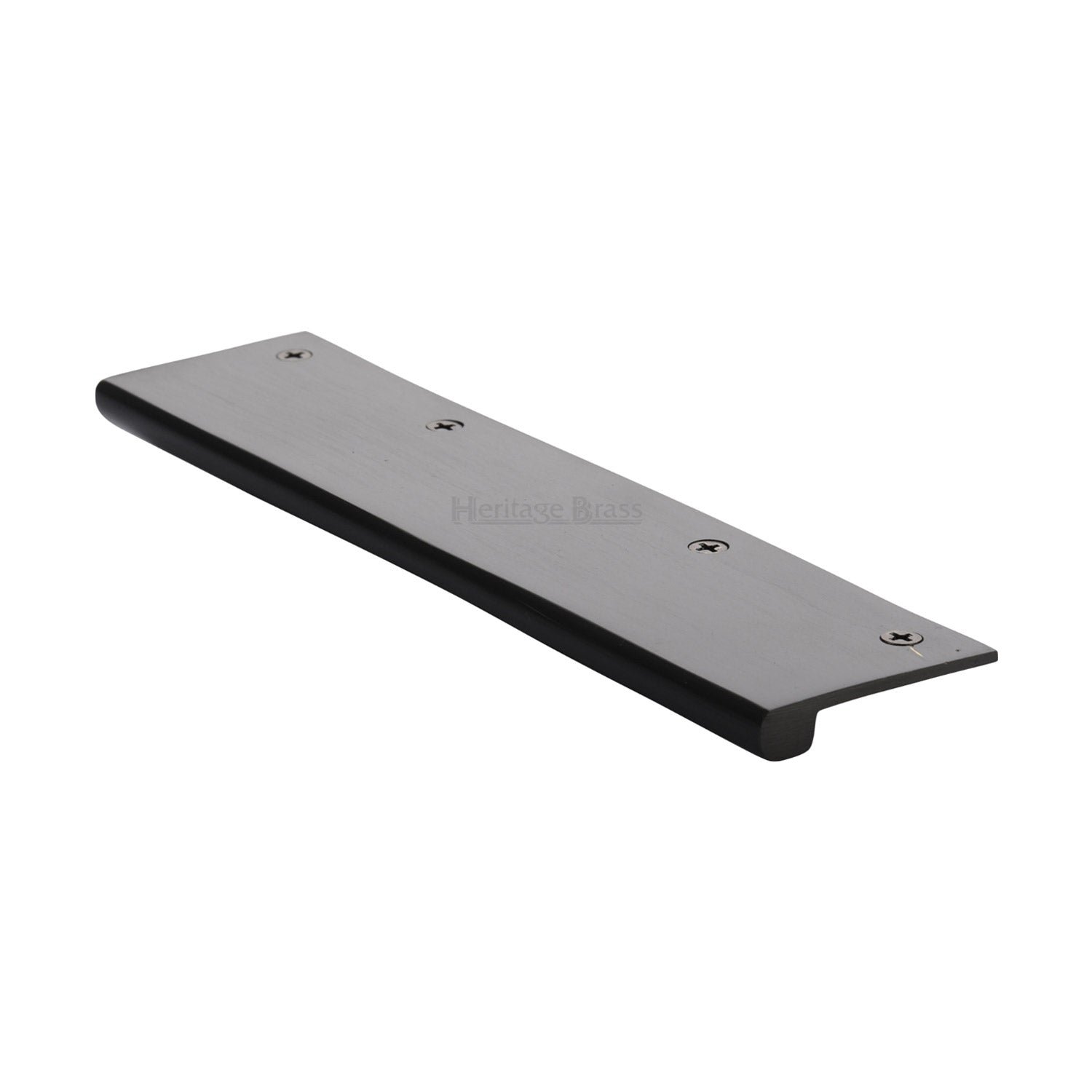

Heritage Brass - EPT Edge Pull Cabinet Handle - 200mm

SKU: MM-EPT200-38-AT
The Heritage Brass EPT Edge Pull Cabinet Handle _x000B__x000B__x0008_100mm is a top-fixing edge pull designed for drawers and cabinet doors. This 200mm version provides a slim, low-profile edge grip that fastens to the top edge of a drawer or door.This listing covers the 200mm EPT edge pull, available in a choice of finishes. It is supplied with the fixing screws and fasteners required for installation. For a flush fit allow for a 2mm gap between drawers or cut a 1.6mm recess; the distance from the edge to the screw centre is 30mm.Key Features Length: 200 mm Width: 38 mm Height / thickness: 1.6 mm Solid brass construction (as specified in the variant description) Top-fixing EPT edge-pull design Distance from edge to screw centre: 30 mm For flush fitting allow a 2 mm gap between drawers, or cut a 1.6 mm recess Supplied with fixing screws and fasteners; box contains 1 edge pull Available Options Antique Brass Matt Black Matt Bronze Polished Brass Polished Chrome Polished Nickel Finish Satin Brass Satin Chrome Satin Nickel
View Technical Drawing
