Heritage Brass 40mm Sliding Lock with Square Privacy Turns

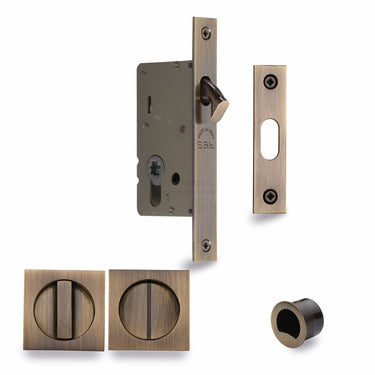

This Heritage Brass sliding lock is designed for pocket doors where a privacy function is required. Its square privacy turns and push-fit square flush pulls create a clean, geometric appearance on both sides of the door, while the hook bolt provides the locking action needed for a sliding format.

Dimensions and door suitability

The lock has a 40mm backset and is suitable for door thicknesses from 35mm to 52mm. Its spindle length adjusts automatically to accommodate doors within this range. Key measurements include a 155mm lock length, 20mm width and 67mm projection.

• Application: pocket doors
• Backset: 40mm
• Door thickness: 35-52mm
• Lock length: 155mm

The solid brass hook bolt is combined with components made from steel, brass, zinc alloys and plastics. Finish options across the range include warm Antique Brass, Polished Brass and Satin Brass, alongside Matt Bronze, Matt Black, Polished Chrome, Satin Chrome and Satin Nickel. This selection makes it easier to coordinate the lock and privacy turns with other architectural hardware, with the exact finish chosen according to the required look.
