Ghost Concealed Butt Hinges - 160mm - Single

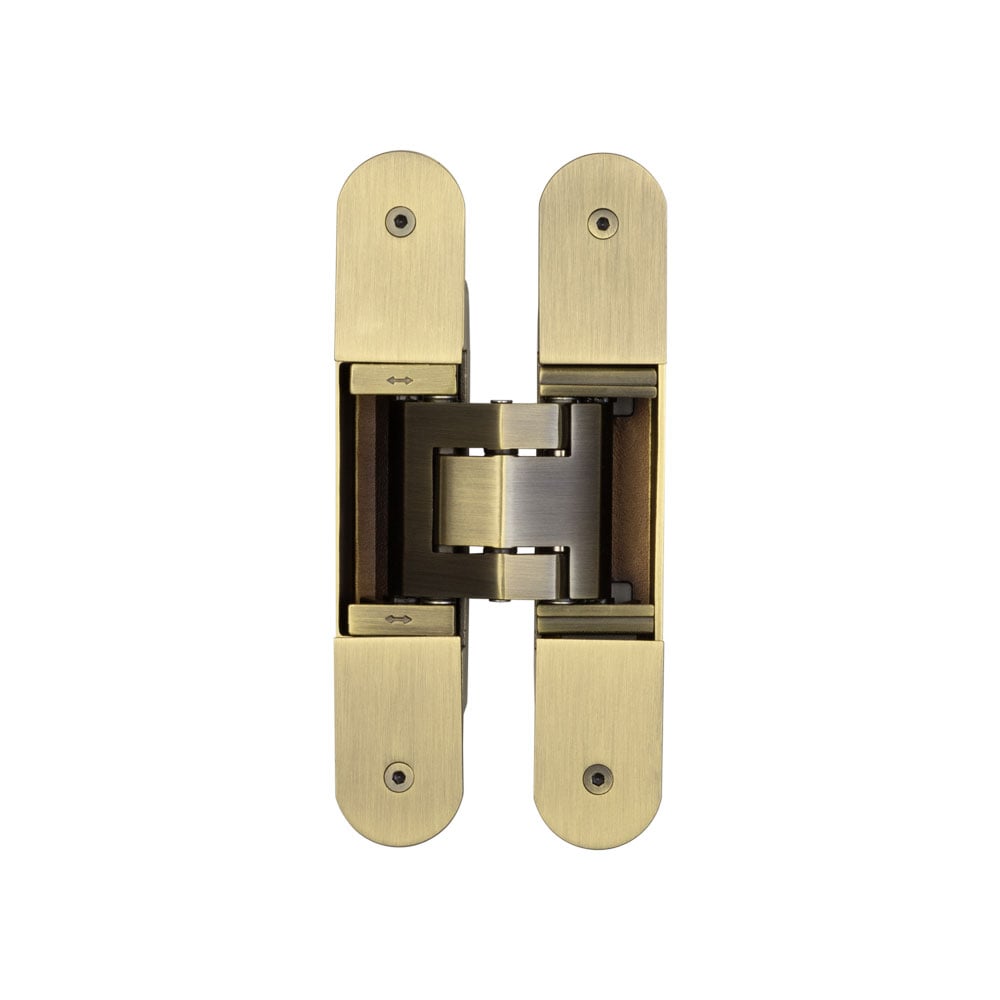

The Ghost Concealed Hinge CH100AB in Antique Brassoffers a premium, fully hidden solution for internal residential and commercial doors. Designed for strength, smooth operation, and a flush finish, it supports heavy-duty applications while maintaining a sleek appearance. Fully 3D adjustable for precise alignment during installation.
KEY FEATURES:
- Suitable For: Flush, unrebated quality timber doors
- Finish: Antique Brass
- 3D Adjustable: Height, depth and lateral movement
- Material Grade: 304g Stainless Steel
- Concealed Fixings: Removeable Cover Plates
- Fire Rated: FD60 w/ 2mm Graphite Flexifire
- Door Weight: 120KG
-Maintenance Free
- Fixings: 2 Allen keys 8No SSS wood screws 4No cover plates
- Suitable for: Internal - Residential / Commerical
- Mechanical Warranty:5 Years

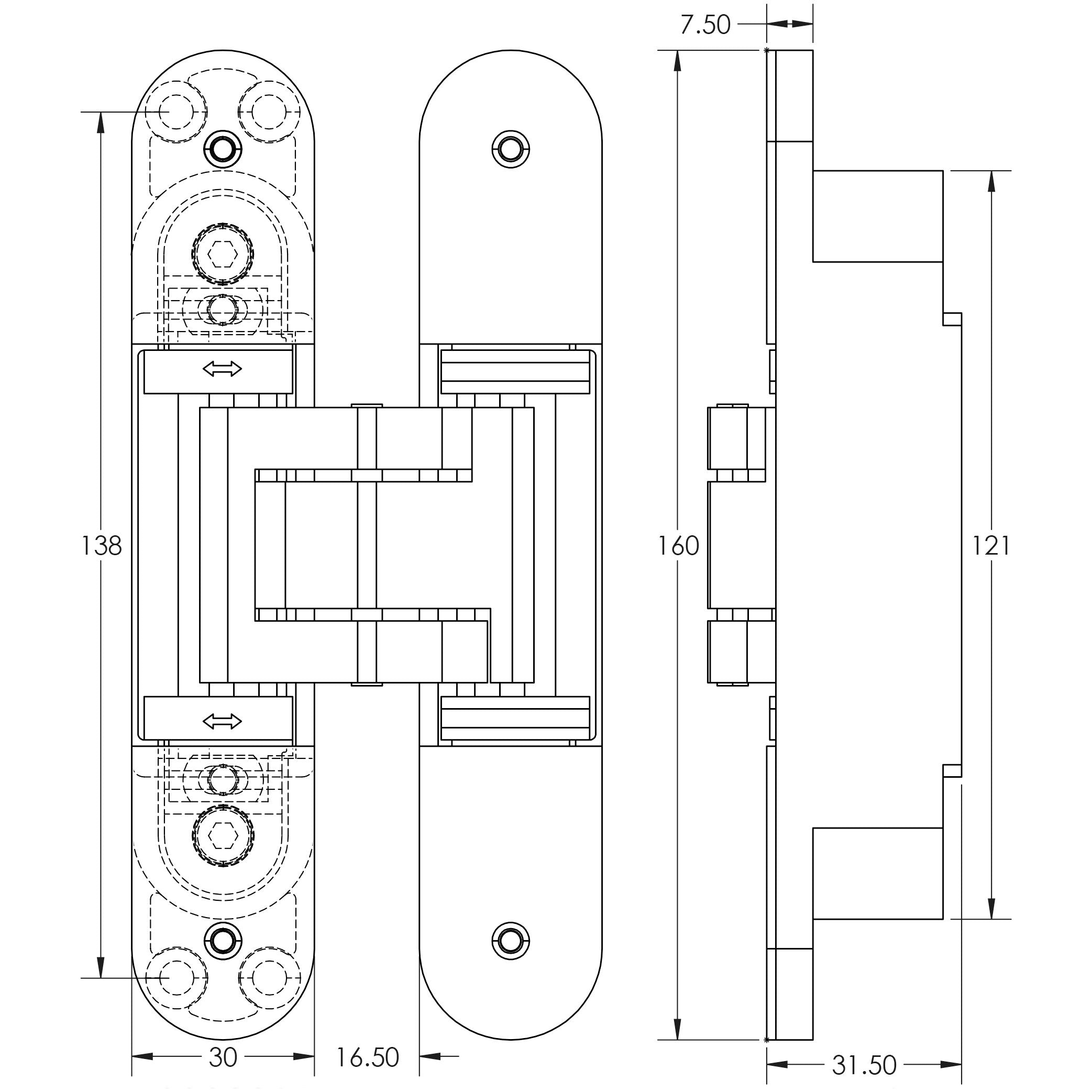

DIMENSIONS:
- Size: 160mm
- Overall Size: 160 x 31.5 x 76.5mm
- Projection: 7.5mm
- Fixing Centres: 138mm
-Thickness: 7mm
- Suitable Door Thickness: 35 - 54mm
We strongly recommend requesting a sample before committing to any cutting and drilling.

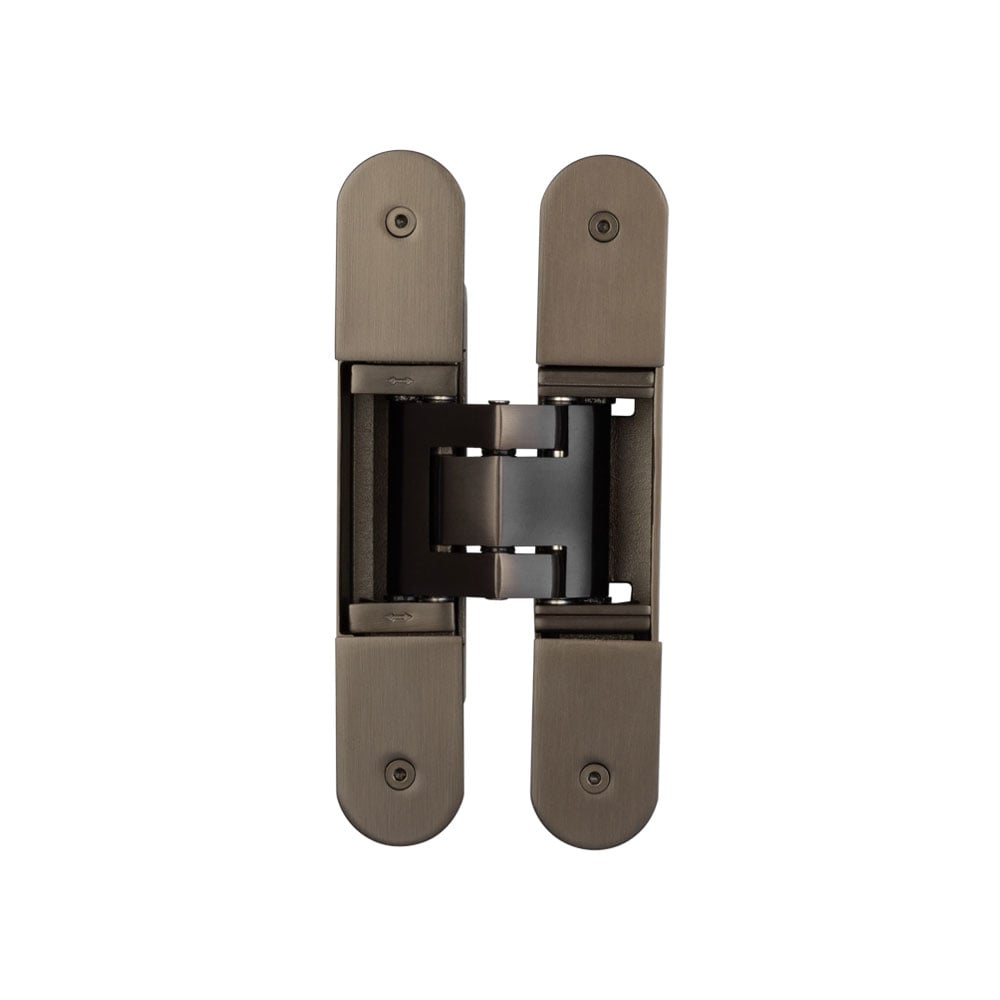

The Ghost Concealed Hinge CH100DB inDarkBronzeoffers a premium, fully hidden solution for internal residential and commercial doors. Designed for strength, smooth operation, and a flush finish, it supports heavy-duty applications while maintaining a sleek appearance. Fully 3D adjustable for precise alignment during installation.
KEY FEATURES:
- Suitable For: Flush, unrebated quality timber doors
- Finish: Dark Bronze
- 3D Adjustable: Height, depth and lateral movement
- Material Grade: 304g Stainless Steel
- Concealed Fixings: Removeable Cover Plates
- Fire Rated: FD60 w/ 2mm Graphite Flexifire
- Door Weight: 120KG
-Maintenance Free
- Fixings: 2 Allen keys 8No SSS wood screws 4No cover plates
- Suitable for: Internal - Residential / Commerical
- Mechanical Warranty:5 Years
DIMENSIONS:
- Size: 160mm
- Overall Size: 160 x 31.5 x 76.5mm
- Projection: 7.5mm
- Fixing Centres: 138mm
-Thickness: 7mm
- Suitable Door Thickness: 35 - 54mm
We strongly recommend requesting a sample before committing to any cutting and drilling.

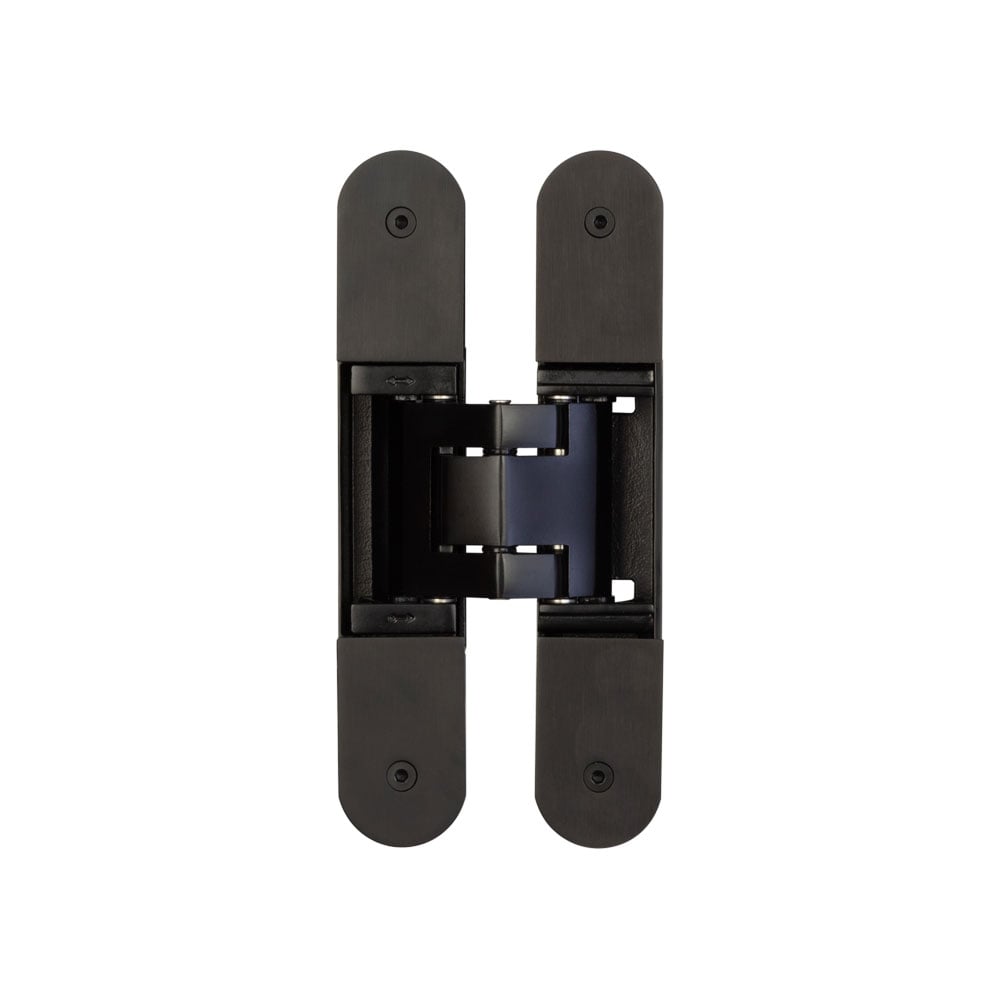

The Ghost Concealed Hinge CH100MB inBlackoffers a premium, fully hidden solution for internal residential and commercial doors. Designed for strength, smooth operation, and a flush finish, it supports heavy-duty applications while maintaining a sleek appearance. Fully 3D adjustable for precise alignment during installation.
KEY FEATURES:
- Suitable For: Flush, unrebated quality timber doors
- Finish: Black
- 3D Adjustable: Height, depth and lateral movement
- Material Grade: 304g Stainless Steel
- Concealed Fixings: Removeable Cover Plates
- Fire Rated: FD60 w/ 2mm Graphite Flexifire
- Door Weight: 120KG
-Maintenance Free
- Fixings: 2 Allen keys 8No SSS wood screws 4No cover plates
- Suitable for: Internal - Residential / Commerical
- Mechanical Warranty:5 Years
DIMENSIONS:
- Size: 160mm
- Overall Size: 160 x 31.5 x 76.5mm
- Projection: 7.5mm
- Fixing Centres: 138mm
-Thickness: 7mm
- Suitable Door Thickness: 35 - 54mm
We strongly recommend requesting a sample before committing to any cutting and drilling.

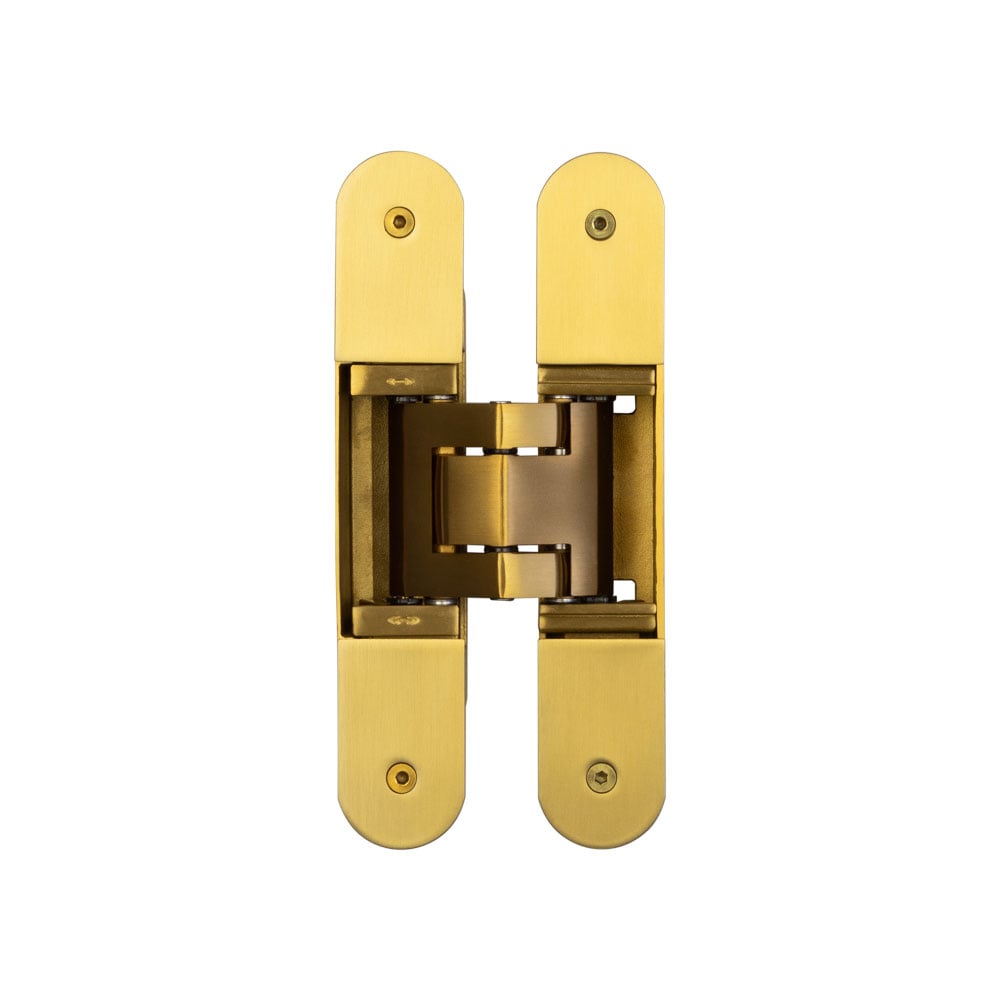

The Ghost Concealed Door Hinge CH100SB inSatinBrassoffers a premium, fully hidden solution for internal residential and commercial doors. Designed for strength, smooth operation, and a flush finish, it supports heavy-duty applications while maintaining a sleek appearance. Fully 3D adjustable for precise alignment during installation.
KEY FEATURES:
- Suitable For: Flush, unrebated quality timber doors
- Finish: Antique Brass
- 3D Adjustable: Height, depth and lateral movement
- Material Grade: 304g Stainless Steel
- Concealed Fixings: Removeable Cover Plates
- Fire Rated: FD60 w/ 2mm Graphite Flexifire
- Door Weight: 120KG
-Maintenance Free
- Fixings: 2 Allen keys 8No SSS wood screws 4No cover plates
- Suitable for: Internal - Residential / Commerical
- Mechanical Warranty:5 Years
DIMENSIONS:
- Size: 160mm
- Overall Size: 160 x 31.5 x 76.5mm
- Projection: 7.5mm
- Fixing Centres: 138mm
-Thickness: 7mm
- Suitable Door Thickness: 35 - 54mm
We strongly recommend requesting a sample before committing to any cutting and drilling.

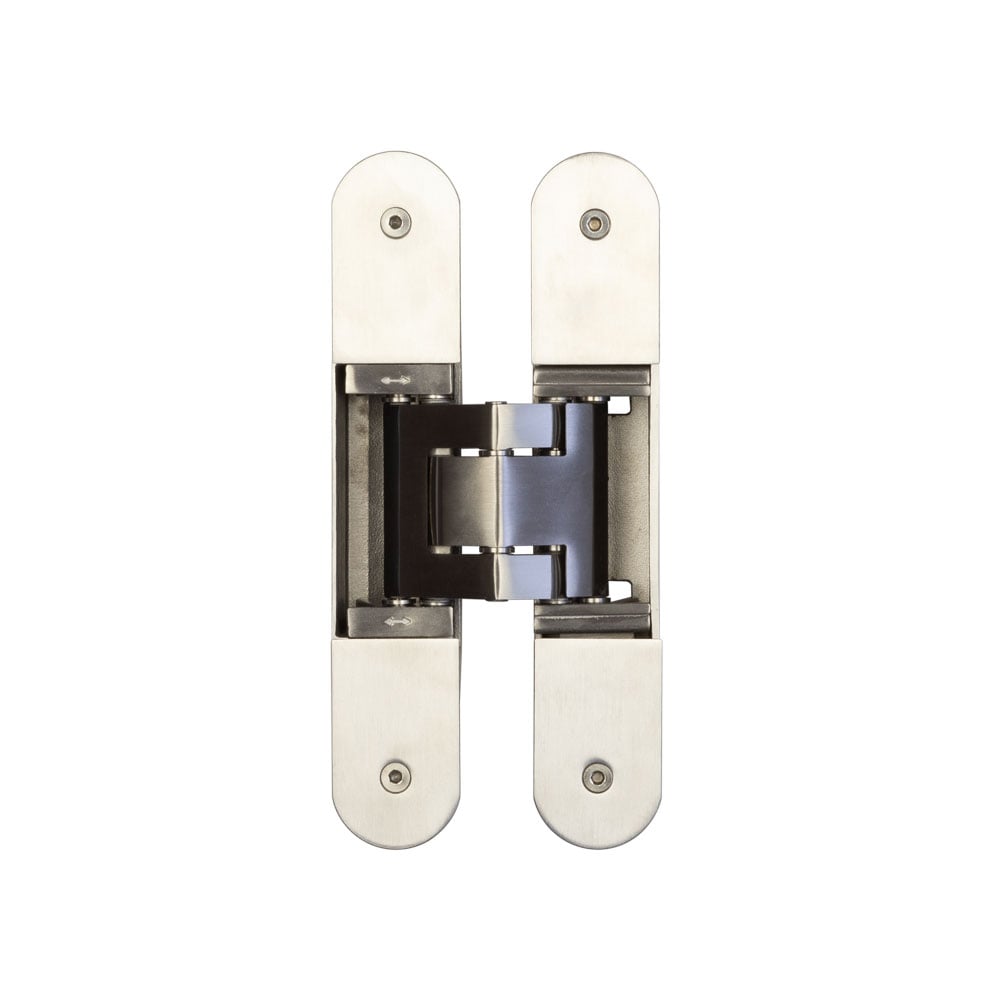

The Ghost Concealed Hinge CH100SS inSatin Stainless Steeloffers a premium, fully hidden solution for internal residential and commercial doors. Designed for strength, smooth operation, and a flush finish, it supports heavy-duty applications while maintaining a sleek appearance. Fully 3D adjustable for precise alignment during installation.
KEY FEATURES:
- Suitable For: Flush, unrebated quality timber doors
- Finish: Satin Stainless Steel
- 3D Adjustable: Height, depth and lateral movement
- Material Grade: 304g Stainless Steel
- Concealed Fixings: Removeable Cover Plates
- Fire Rated: FD60 w/ 2mm Graphite Flexifire
- Door Weight: 120KG
-Maintenance Free
- Fixings: 2 Allen keys 8No SSS wood screws 4No cover plates
- Suitable for: Internal - Residential / Commerical
- Mechanical Warranty:5 Years
DIMENSIONS:
- Size: 160mm
- Overall Size: 160 x 31.5 x 76.5mm
- Projection: 7.5mm
- Fixing Centres: 138mm
-Thickness: 7mm
- Suitable Door Thickness: 35 - 54mm
We strongly recommend requesting a sample before committing to any cutting and drilling.
| Manufacturer Details | |
|---|---|
| Manufacturer | Frelan Hardware |
| Brand | Jedo Contemporary + |
| Range | Ghost |
| Style & Shape | |
| Style | Modern |
| Pattern | Concealed Hinge |
| Application & Usage | |
| Residential or Commercial | Residential/Commerical |
| Material & Finish | |
| Finish Name | Antique Brass |
| Finish Colour Group | Antique Brass |
| Material | Stainless |
| Mechanical Guarantee | 5 Years |
| Dimensions | |
| Size | 160mm |
| Projection (mm) | 7.5mm |
| Fixing Centres (mm) | 138mm |
| Technical Dimensions | 160x31.5x76.5mm |
| Manufacturer Details | |
|---|---|
| Manufacturer | Frelan Hardware |
| Brand | Jedo Contemporary + |
| Range | Ghost |
| Style & Shape | |
| Style | Modern |
| Pattern | Concealed Hinge |
| Application & Usage | |
| Residential or Commercial | Residential/Commerical |
| Material & Finish | |
| Finish Name | Dark Bronze |
| Finish Colour Group | Bronze |
| Material | Stainless |
| Mechanical Guarantee | 5 Years |
| Dimensions | |
| Size | 160mm |
| Projection (mm) | 7.5mm |
| Fixing Centres (mm) | 138mm |
| Technical Dimensions | 160x31.5x76.5mm |
| Manufacturer Details | |
|---|---|
| Manufacturer | Frelan Hardware |
| Brand | Jedo Contemporary + |
| Range | Ghost |
| Style & Shape | |
| Style | Modern |
| Pattern | Concealed Hinge |
| Application & Usage | |
| Residential or Commercial | Residential/Commerical |
| Material & Finish | |
| Finish Name | Black |
| Finish Colour Group | Black |
| Material | Stainless |
| Mechanical Guarantee | 5 Years |
| Dimensions | |
| Size | 160mm |
| Projection (mm) | 7.5mm |
| Fixing Centres (mm) | 138mm |
| Technical Dimensions | 160x31.5x76.5mm |
| Manufacturer Details | |
|---|---|
| Manufacturer | Frelan Hardware |
| Brand | Jedo Contemporary + |
| Range | Ghost |
| Style & Shape | |
| Style | Modern |
| Pattern | Concealed Hinge |
| Application & Usage | |
| Residential or Commercial | Residential/Commerical |
| Material & Finish | |
| Finish Name | Satin Brass |
| Finish Colour Group | Brass |
| Material | Stainless |
| Mechanical Guarantee | 5 Years |
| Dimensions | |
| Size | 160mm |
| Projection (mm) | 7.5mm |
| Fixing Centres (mm) | 138mm |
| Technical Dimensions | 160x31.5x76.5mm |
| Manufacturer Details | |
|---|---|
| Manufacturer | Frelan Hardware |
| Brand | Jedo Contemporary + |
| Range | Ghost |
| Style & Shape | |
| Style | Modern |
| Pattern | Concealed Hinge |
| Application & Usage | |
| Residential or Commercial | Residential/Commerical |
| Material & Finish | |
| Finish Name | Satin Stainless Steel |
| Finish Colour Group | Silver |
| Material | Stainless |
| Mechanical Guarantee | 5 Years |
| Dimensions | |
| Size | 160mm |
| Projection (mm) | 7.5mm |
| Fixing Centres (mm) | 138mm |
| Technical Dimensions | 160x31.5x76.5mm |
